Stationary Compactor RamJet 400 Ultra
Cost Saving Value…
Mark-Costello’s RJ-400 Ultra Stationary Compactor: highly efficient, economical compaction equipment for today’s cost conscious waste generators. The RJ-225 Ultra provides the cost-saving benefits of solid waste compaction including labor reduction, fewer collection pick-ups, and space savings.
Performance
The RJ-400 Ultra compactor is fully automatic. Simply dump waste into the large 67 1/2″ x 60″ charge box opening and turn the key. After the compaction cycle completes, the unit shuts down automatically. Key operation gives the operator absolute control over compactor use, eliminating expensive sharing of waste receptacles.
Ram Guide System
The packing ram is supported by specially formulated cast iron shoes which ride on replaceable wear strips. This exclusive design protects the charge box floor from the full force of the packing ram, extending its life and dramatically reducing compaction-robbing friction.
All of Mark-Costello’s RamJet 225 Series Compactors are Totally UL Listed!

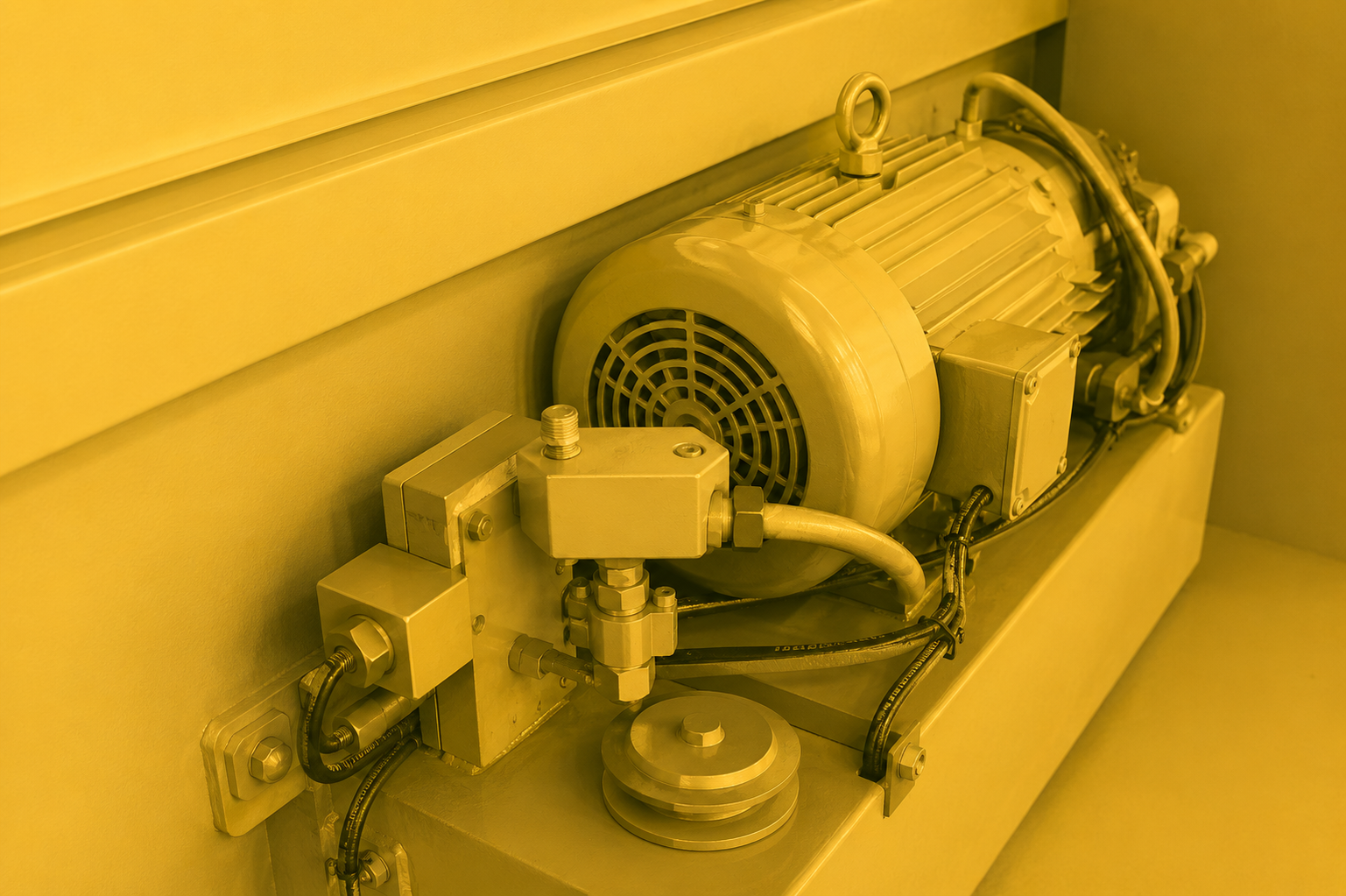

Side-Mount Power Unit
Mark-Costello’s Side-Mounted Power Unit, the first in the industry, offers the convenience and ease-of-maintenance of a remote power pack with the space savings of an integrated power pack. This new configuration eliminates ALL electrical components inside the compactor.
The Pump on Mark-Costello’s high performance Side-Mounted Power Unit is secured to a “C” flange TEFC motor with a machined bracket that guarantees coupling alignment. The Limit Switch and all other parts of the power unit are easily accessible for ease-of-maintenance. The Reset Button for the Motor Starter is also located on the outside which eliminates entry into the control box.

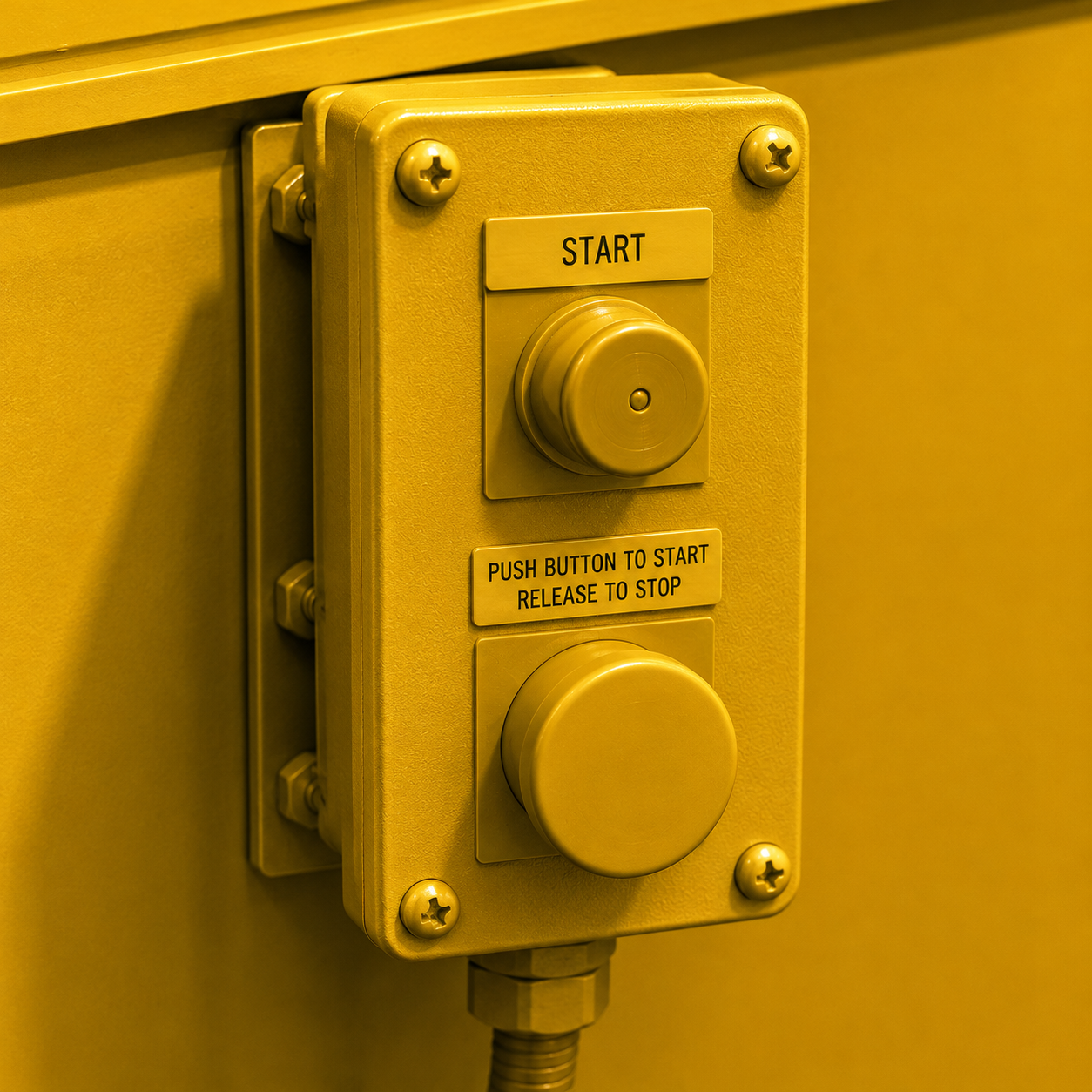

Advanced Control System
The RJ-400 Ultra features an advanced, simplified control system with 2 button operation. It is key-operated and fully automatic. The heavy duty push button controls are contained in a weatherproof NEMA 13 enclosure. Connected to the power pack with 13′ of sealtite, the controls can be located for operator convenience.
- Side-Mount Power Unit
- Power Unit Weather Cover
- Control Panel Box
- Motor Starter Reset Button
- Limit Switch
- Ram
- Ram Guide Shoes with Replaceable Wear Strips
| A | B | C | D | E | *F | *G1 | *G2 | *H | *H | I | J | K | L | M | N | O | P | Q |
| 173 3/4″ | 78″ | 48 9/16″ | 69″ | 60″ | 75 1/2″ | 95 3/4″ | 66″ | 9″ | 3″ | 31 1/2″ | 9″ | 102 3/4″ | 71″ | 38″ | 10″ | 38 1/2″ | 14 3/4″ | 5″ |
| 3035 mm | 1981 mm | 1233 mm | 1753 mm | 1524 mm | 1905 mm | 2705 mm | 2705 mm | 229 mm | 76 mm | 800 mm | 226 mm | 2610 mm | 1803 mm | 965 mm | 229 mm | 254 mm | 375 mm | 127 mm |
* At Bolt Centers (reference dimensions only)
| Charge Box Capacity | ||
| [Mfrs. Rating] | 3.0 cy | 2.3 m3 |
| [WASTEC Rating] | 2.55 cy | 1.95 m3 |
| Clear Top Opening | 67.5″ X 60″ | 1714mm x 1524mm |
| Capacity Per Hour | 184 cy | 140 m3 |
Performance Data
| Cycle Time | 50 s | 50 s |
| Total Normal Force | 46,700 lb | 208 kN |
| Total Maximum Force | 55,100 lb | 245 kN |
| Normal Ram Face Pressure | 26.8 psi | 185 kPa |
| Maximum Ram Face Pressure | 31.7 psi | 218 kPa |
| Ram Penetration | 13″ | 330 mm |
Electrical Equipment
| Electrical Motor 3/60-208/230/460 | 15 hp | 11.2 kW |
| Electrical Control Voltage | 120 VAC | 120 VAC |
| UL Labeled Panel Box: Type NEMA 3R, All Circuits Fused | ||
| Standard 2 Button Controls: Keylock Start/ Mushroom Stop Connected to 13′ Sealtite | ||
Hydraulic Equipment
| Hydraulic Pump Capacity | 18.5 gpm | 70 L/min. |
| Normal Pressure | 1650 psi | 11.4 mPa |
| Maximum Pressure | 1950 psi | 13.4 mPa |
| Hydraulic Cylinder | 6″ Bore x 4″ Rod | 152 mm x 102 mm |
| Weight | 6100 lbs. | 2767 kg |
Pictures on this page are illustrative only. Specifications are subject to change without notice to accommodate improvements to the equipment. Certified in compliance with ANSI Regulation Z245.2, all OSHA standards, and certified under WASTEC’s Stationary Compactor Certification Program. Products must be used with safe practice and in accordance with said regulations and standards.
Optional Features Available
The optional TrashMinder® is the most advanced method for reporting and measuring container fullness as well as for managing user access and billing. Click here for details.
Multi-cycle timer, dual controls, ozone odor control system, security chutes, hoppers, cart dumpers and many other options are also available as well as a full line of compaction containers.
