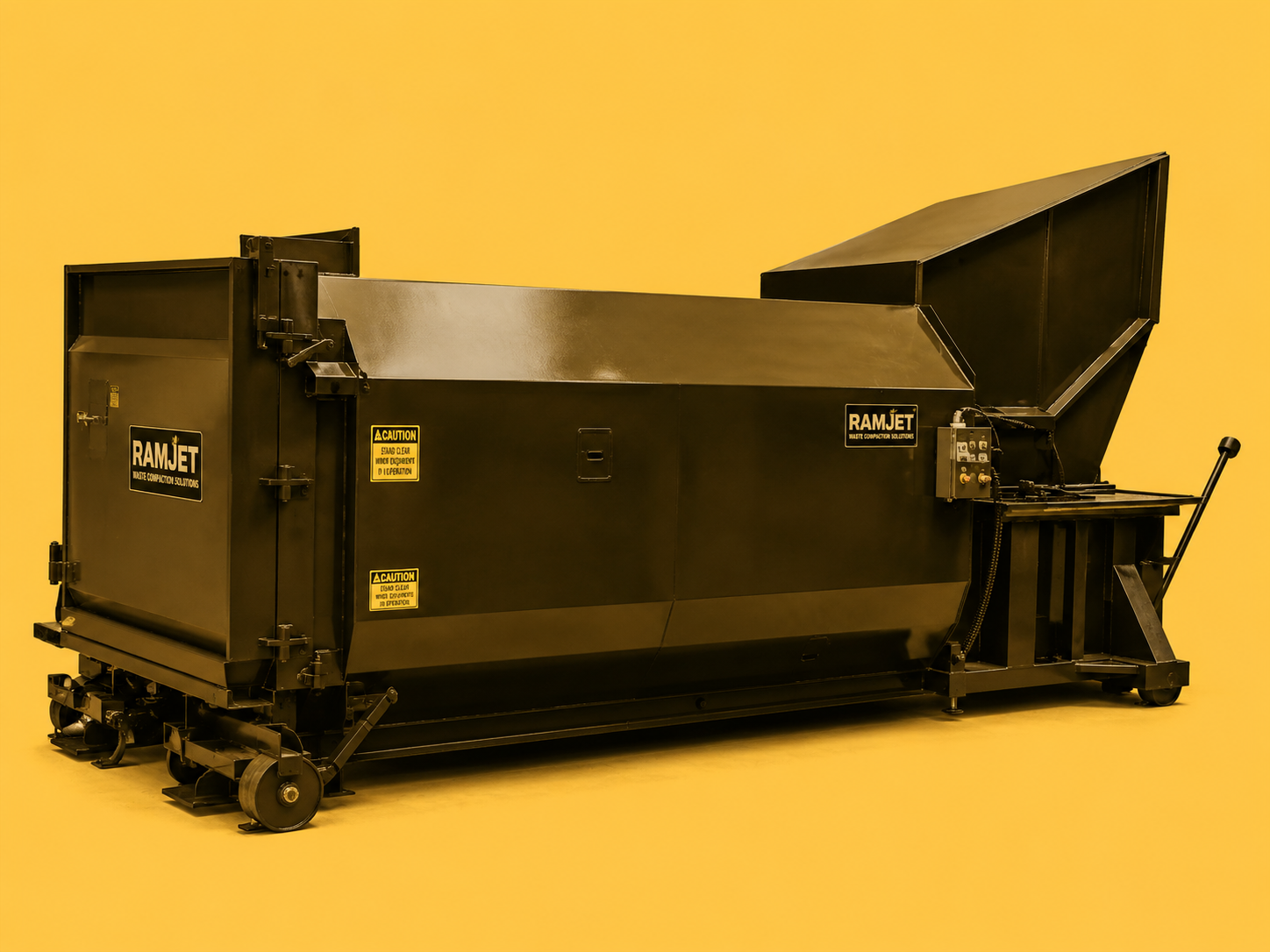

RJ-88SC Self-Contained Compactor/ Containers
Mark-Costello’s RJ-88SC Self-Contained Compactor/ Containers are ideal for waste with high liquid content and for applications where space is limited. Each RJ-88 series compactors store liquid and controls insect and odor problems.
The RJ-88SC is ideal for…
- Shopping centers
- Supermarkets
- Restaurants
- Hotels
- In flight kitchens
- Hospitals and institutions
Components are selected for longevity and minimum maintenance, with special attention given to the selection of highly sensitive components. Stress engineering provides the optimum degree of structural integrity. Only the best materials are used. The highest standards of quality are observed in the manufacturing process. That’s why you’ll find Mark-Costello Compactors “packing trash” long after other makes have failed!
RJ-88C Compactor can be customized with a variety of loading arrangements to suit your specific needs.

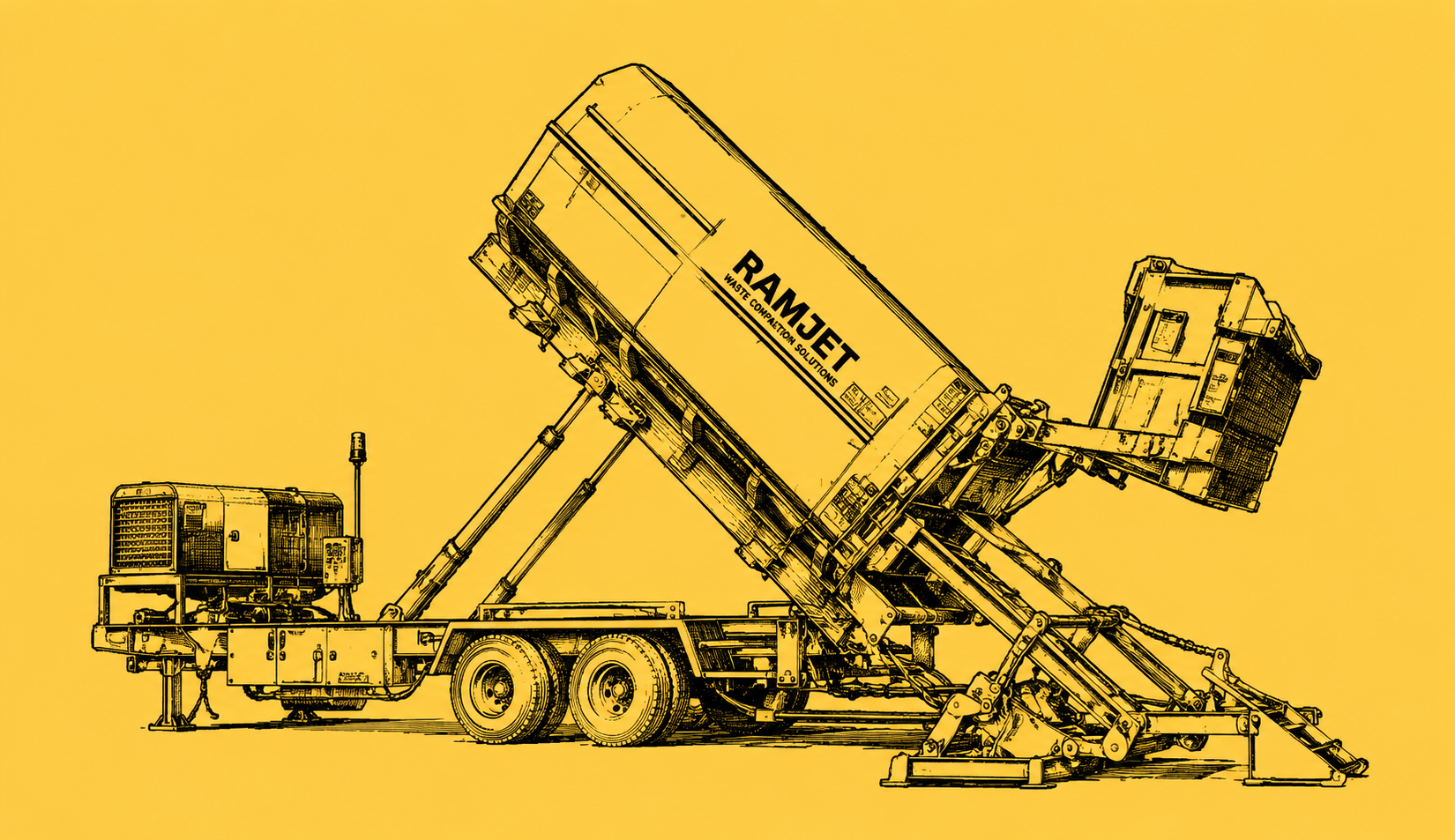

Also See the RJ-88 HT. The RJ-88 HT features a Hydraulic Tailgate and is well suited for security chute-fed and dock-fed applications where maneuvering space for the collection vehicle is limited.
RJ-88SC Features
- The RJ-88 SC’s smaller size makes it excellent for restaurant and fast food applications. They normally fit easily in waste corrals for an attractive and convenient installation at minimum installation cost.
- With standard double end pick-up, the unit can be loaded for hauling from either end. This is especially useful if installed perpendicular to a dock (Packer End pick-up option does not include front ground rollers).
- The RJ-88 SC uses a Remote Power Pack that remains on-site while the self-contained compactor container is taken to the landfill.
- Factory testing to assure leak-proof construction.
- The RJ-88 Series Self-Contains can be used with a hopper to double or triple your loading capacity!
- They are equally easy to load from ground or dock level and can be continuously fed while the unit is cycling!
- Total odor and pest control via Mark-Costello’s Ozone Odor Control option
- Easy and fast installation! Installation costs are cut by half over conventional compaction systems.
- Fire hose connection provided on each unit.
All of Mark-Costello’s RamJet 225 Series Compactors are Totally UL Listed!
Structural Dimensions
The RJ-88SC uses a Remote Power Pack that remains on-site while the self-contained compactor container is taken to the landfill.
| A* | B | C | D | E | Weight | |
| 15 cu yds | 43″ 1092mm | 30 1/2″ 777mm | 70″ 1778mm | 187″ 4750mm | 89″ 2261mm | 7200 lbs. 3265 kg. |
| 20 cu yds | 43″ 1092mm | 30 1/2″ 777mm | 70″ 1778mm | 222″ 5639mm | 89″ 2261mm | 7600 lbs. 3447 kg. |
| 24 cu yds | 43″ 1092mm | 30 1/2″ 777mm | 70″ 1778mm | 256″ 6502mm | 89″ 2261mm | 8000 lbs. 3628 kg. |
| Charge Box Capacity | ||
| [Mfrs. Rating] | 1.0 cy | .76 m3 |
| [WASTEC Rating] | 0.70 cy | .54 m3 |
| Clear Top Opening | 30.5″ L X 48″ W | 775mm x 1219mm |
Performance Data
| Cycle Time | 44 sec | 44 sec |
| Total Normal Force | 36,600 lb | 162 kN |
| Total Maximum Force | 43,100 lb | 192 kN |
| Normal Ram Face Pressure | 34.7 psi | 239 kPa |
| Maximum Ram Face Pressure | 40.8 psi | 281 kPa |
| Ram Penetration | 6Ó | 152 mm |
Electrical Equipment
| Electric Motor 3/60/230-460 | 5 hp | 3.7 kW |
| Electric Control Voltage | 120 VAC | 120 VAC |
| Panel Box Assembly UL Listed | ||
| All Circuits Fused Key Operated | ||
| 3 Push Button Station Start/Stop/Reverse | ||
Hydraulic Equipment
| Hydraulic Pump | 6 gpm | 23 L/min |
| Normal Pressure | 1700 psi | 117 bar |
| Maximum Pressure | 2000 psi | 138 bar |
| Cylinder Bore | 2 @ 4″ each | 102 mm |
| Cylinder Rod | 2 @ 2.5″ | 64 mm |
Pictures on this page are illustrative only. Specifications are subject to change without notice to accommodate improvements to the equipment. Certified in compliance with ANSI Regulation Z245.2, all OSHA standards, and certified under WASTEC’s Stationary Compactor Certification Program. Products must be used with safe practice and in accordance with said regulations and standards.
The RJ-88SC can be fitted with security chutes and other optional features.
Optional Features Available
The optional TrashMinder® is the most advanced method for reporting and measuring container fullness as well as for managing user access and billing. Click Here for details.
Your Self-Contained can be fitted with options such as multi-cycle timer, cart dumper systems, dual controls, ozone odor control system, security chutes, hoppers, and many much more.
