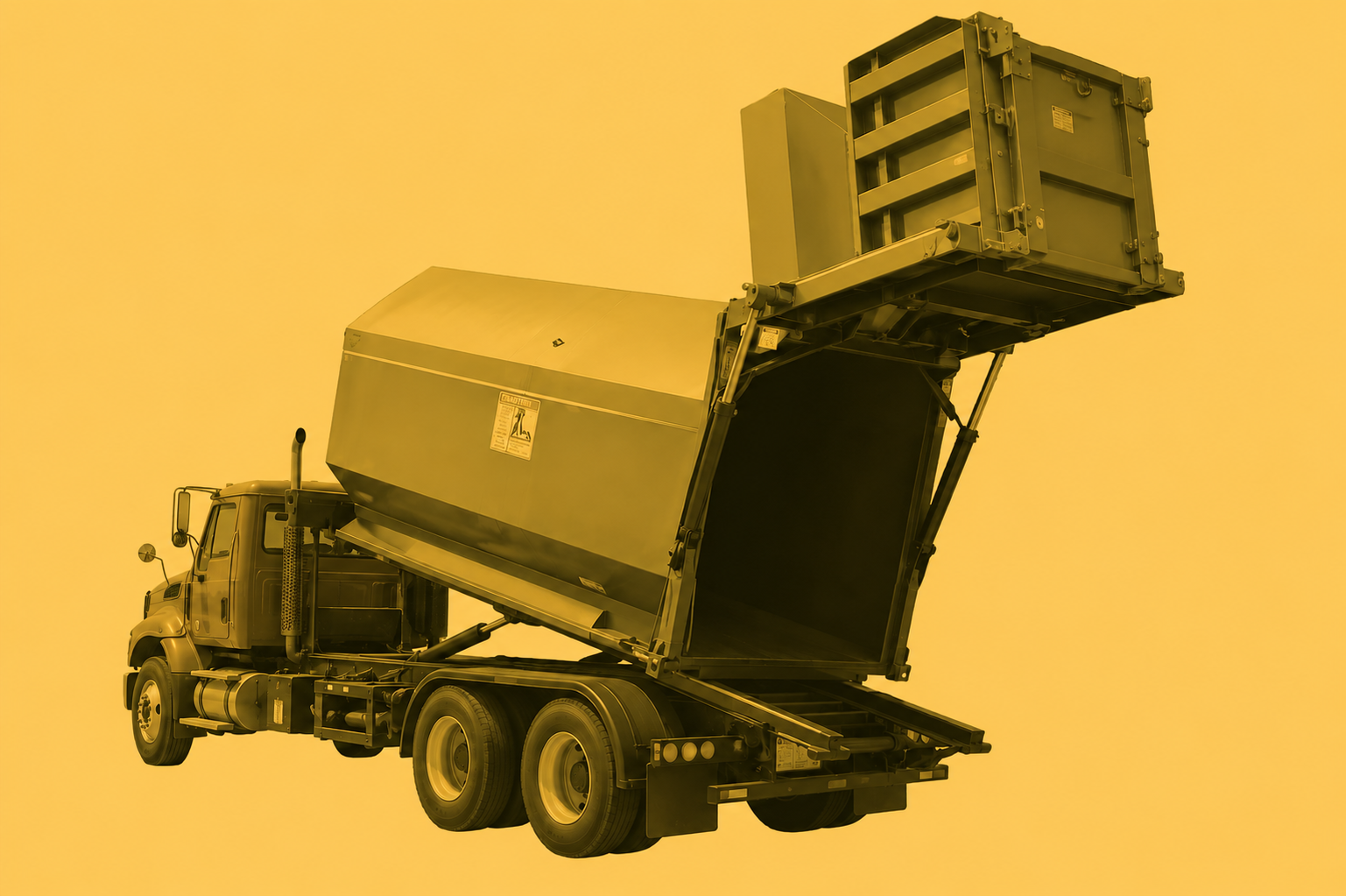

RJ-250HT Self-Contained Compactor with Hydraulic Tailgate
The RJ-250HT is particularly well suited for security chute-fed and dock-fed applications where maneuvering space for the collection vehicle is limited. Unique to the RJ-250HT, the compactor is built into the same door through which the compacted refuse is later emptied, eliminating the need for the additional space necessary for the time-consuming double “turn-around” maneuver required for conventional self-contained models.
The RJ-250 Compactors combine the ability to safely store high-liquid content wastes in controlled environments with the conveniences and economics of compaction! Offering maximum benefits for:
- Malls
- Supermarkets
- Large Restaurants
- Hotels
- Hospitals and institutions
- Resorts and food processors
- Engineering
Components are selected for longevity and minimum maintenance, with special attention given to the selection of highly sensitive components. Stress engineering provides the optimum degree of structural integrity. Only the best materials are used. The highest standards of quality are observed in the manufacturing process. That’s why you’ll find Mark-Costello Compactors “packing trash” long after other makes have failed!
The RJ-250 units are state-of-the-art in roll-off self-contained compactors featuring oversized feed opening and expanded container storage capacity. They are designed to store and transport your wastes, prevent contamination of your work and public areas in accordance with public health department requirements, improve working conditions for your employees and reduce disposal costs.
RJ-250HT Compactor can be customized with a variety of loading arrangements to suit your specific needs.
RJ-250HT Features:
- Eliminates the need for the additional space necessary for the time-consuming double “turn-around” maneuver required for conventional self-contained models.
- Exclusive 40″ x 58″ feed opening to handle large, bulky items!
- Continuous feeding capability – even while compactor is operating!
- Adaptable to special loading systems such as large capacity hoppers, security chutes or total enclosures.
- Total odor and pest control via Mark-Costello’s Ozone Odor Control option
- Easy loading from either ground or dock level.
- Over 24 tons of crushing force to reduce refuse to a fraction of its former size saving valuable space.
- Fits into same space as industry pace-setting RJ-100SC! Extra length roll-off hoist is not required!
- Easy and fast installation! Installation costs are cut by half over conventional compaction systems.
- Fire hose connection provided on each unit.
- Factory testing to assure leakproof construction.
All of Mark-Costello’s RamJet 225 Series Compactors are Totally UL Listed!
Also See Mark-Costello’s RJ-88HT
Structural Dimensions
The RJ-250HT uses a Remote Power Pack that remains on-site while the self-contained compactor container is taken to the landfill.
| RJ-250HT | A | B | C | D** | E | LBS. |
| 25 cu yds | 4′ 5-1/2″ 1353mm | 3′ 7-1/4″ 1099mm | 5′ 8″ 1727mm | 20′ 9-1/2″ 6337mm | 8′ 6″* 2591mm | 11104 4173kg |
| 29 cu yds | 4′ 5-1/2″ 1353mm | 3′ 7-1/4″ 1099mm | 5′ 8″ 1727mm | 23′ 1″ 7036mm | 8′ 6″* 2591mm | 11604 5264kg |
| * | Overall height with hydraulic tailgate raised: 16′-6″. Hoist should be equipped with selector valve (1500 psi minimum) in order to control hydraulic tailgate. | |||||
| Charge Box Capacity | ||
| [Mfrs. Rating] | 1.9 cu yd | 1.44 m3 |
| [WASTEC Rating] | 1.52 cu yd | 1.16 m3 |
| Clear Top Opening | 40″L x 58″W | 1016 mm x 1473 mm |
Performance Data
| Cycle Time | 33 seconds | 33 seconds |
| Total Normal Force | 39,900 lb | 177 kN |
| Total Maximum Force | 49,500 lb | 220 kN |
| Normal Ram Face Pressure | 22.9 psi | 158 kPa |
| Maximum Ram Face Pressure | 28.4 psi | 196 kPa |
| Ram Penetration | 6″ | 152 mm |
Electrical Equipment
| Electric Motor 3/60/230-460 | 10 hp | 7.5 kW |
| Electric Control Voltage | 120 VAC | 120 VAC |
| Panel Box Assembly | ||
| UL Rated Key Operated | ||
| All Circuits Fused – 3 Push Button Station Start/Stop/Reverse | ||
Hydraulic Equipment
| Hydraulic Pump | 10 gpm | 38 L/min |
| Normal Pressure | 1850 psi | 128 bar |
| Maximum Pressure | 2300 psi | 159 bar |
| Cylinder Bore | 2 @ 4″ each | 102 mm |
| Cylinder Rod | 2 @ 2-1/2″ each | 64 mm |
Pictures on this page are illustrative only. Specifications are subject to change without notice to accommodate improvements to the equipment. Certified in compliance with ANSI Regulation Z245.2, all OSHA standards, and certified under WASTEC’s Stationary Compactor Certification Program. Products must be used with safe practice and in accordance with said regulations and standards.
Optional Features Available
The optional TrashMinder® is the most advanced method for reporting and measuring container fullness as well as for managing user access and billing. Click Here for details.
Your Self-Contained can be fitted with options such as multi-cycle timer, cart dumper systems, dual controls, ozone odor control system, security chutes, hoppers, and many much more.
