Vertical Balers
Mark-Costello’s exclusive HYPRESS® Hydraulic-Electric Power Unit forces the platen to dwell against the recyclables, trapping material “springback.” This creates high density, maximum weight bales!
Several of Mark-Costello’s Vertical Baler models have front tie-off and automatic bale eject.

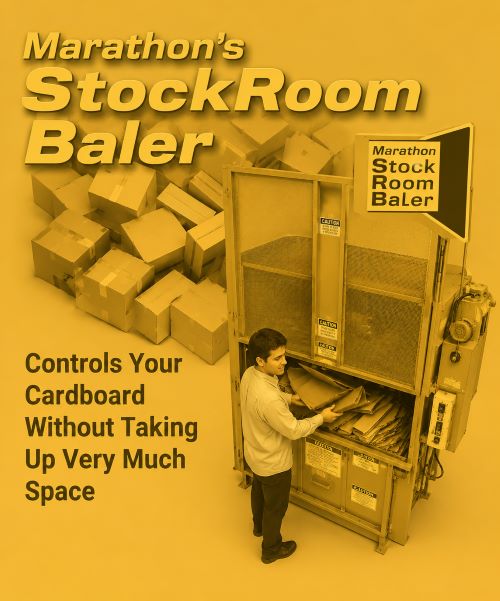

Grocery stores, department stores, drug stores, and retail stores will benefit from Mark-Costello’s Stockroom Baler. This baler is built on casters for easy moveability and is designed to fit nicely into even the smallest stockrooms.
Mark-Costello has a complete line of Vertical Balers in a variety of sizes to suit your recycling needs. Create bales of cardboard, paper, plastics, rags, cans, and many other recyclable materials.
Standard and Available Features:
- Bale tie-off from front of unit.
- Unique corner/wall design.
- Automatic bale eject.
- Efficient, self-contained power unit.
- Low profile units.
- HYPRESS® Hydraulic-Electric Power Unit.
- High density bales.

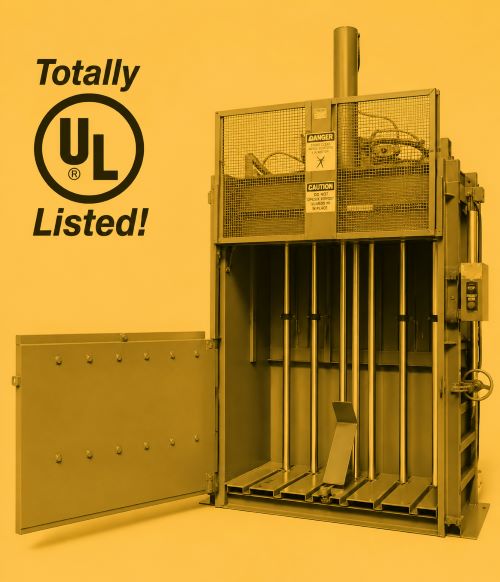

- Totally UL Listed
- Hands-free loading.
- Feed door that automatically opens at the end of each cycle.
- Heavy duty construction.
- Automatic shutdown/ bale made light.
- Much, much more!
Mark-Costello’s standard V-6030 & V-4830 Vertical Baler have many of the same features as the heavy duty models but with a more economical price! Pressure settings and operating forces are the same as the V-6030HD model with a platen force of 62,200 lbs!
Structural Dimensions
| Model | A | B | C | D | E | F | G |
| V-2420 | 41″ | 32″ | 100″ | 35″ | 18″ | 28 1/2″ | 18″ |
| V-3620 | 53″ | 32″ | 94″ | 29″ | 18″ | 42 1/2″ | 18″ |
| V-3630 | 58″ | 44″ | 109 1/4″ | 38″ | 19″ | 37″ | 18″ |
| V-4224 | 60″ | 35 1/2″ | 78″ | 34″ | 20″ | 43″ | 18″ |
| V-4230 | 62″ | 46 1/2″ | 144 1/2″ | 54″ | 24″ | 43″ | 18″ |
| V-4830 | 73″ | 46 1/2″ | 139″ | 50″ | 24″ | 49″ | 12″ |
| V-6030 | 85″ | 46 1/2″ | 139″ | 50″ | 24″ | 61″ | 12″ |
| V-7230HD | 97″ | 51 1/2″ | 141″ | 52″ | 24″ | 73″ | 12″ |
| V-7242HD | 102″ | 59 1/2″ | 146″ | 52″ | 24″ | 73″ | 18″ |
| V-4830HD | 73″ | 51 1/2″ | 139″ | 50″ | 24″ | 49″ | 12″ |
| V-6030HD | 85″ | 51 1/2″ | 139″ | 50″ | 24″ | 61″ | 12″ |
| V-6042LP | 98″ | 64″ | 95″ | 38″ | 19″ | 61″ | 12″ |
| V-6030LP | 98″ | 48″ | 95″ | 38″ | 19″ | 61″ | 12″ |
| V-6030HDXP | 102″ | 47 1/2″ | 162″ | 52″ | 24″ | 70″ | 12″ |
Performance Data
<<
| Model | Bale Size | Bale Weight (OCC) | Cycle Time | Platen Force | Platen Pressure | Motor | Weight |
| V-2420 | 24″x20″x20″ | 75-100 lbs. | 30 sec. | 14,100 lbs. | 33.7 psi | 3 hp | 1,125 lbs. |
| V-3620 | 36″x20″x20″ | 100-150 lbs. | 30 sec. | 14,100 lbs. | 19.6 psi | 3 hp | 1,500 lbs. |
| V-3630 | 36″x30″x30″ | 250-500 lbs. | 28 sec. | 29,500 lbs. | 30.1 psi | 5 hp | 2,450 lbs. |
| V-4224 | 42″x24″x28″ | up to 400 lbs. | 40 sec. | 23,750 lbs. | 24.0 psi | 1.5 hp | 1,800 lbs. |
| V-4230 | 42″x30″x48″ | up to 700 lbs. | 48 sec. | 48,100 lbs. | 38.2 psi | 10 hp | 3,600 lbs. |
| V-4830 | 48″x30″x48″ | 700-900 lbs. | 59 sec. | 62,200 lbs. | 47.0 psi | 10 hp | 3,600 lbs. |
| V-6030 | 60″x30″x48″ | up to 1,000 lbs. | 59 sec. | 62,200 lbs. | 37.0 psi | 10 hp | 4,050 lbs. |
| V-7230 HD | 72″x30″x48″ | up to 1600 lbs. | 48 sec. | 70,700 lbs. | 35.3 psi | 15 hp | 6,000 lbs. |
| V-7242 HD | 72″x42″x48″ | up to 2,000 lbs. | 55 sec. | 96,200 lbs. | 33.3 psi | 20 hp | 10,300 lbs. |
| V-4830 HD | 48″x30″x48″ | 700-900 lbs. | 69 sec. | 62,200 lbs. | 47.0 psi | 10 hp | 4,150 lbs. |
| V-6030 HD | 60″x30″x48″ | up to 1,100 lbs. | 69 sec. | 62,200 lbs. | 37.0 psi | 10 hp | 4,600 lbs. |
| V-6030 LP | 60″x30″x30″ | up to 750 lbs. | 48 sec. | 80,800 lbs. | 48.0 psi | 10 hp | 5,000 lbs. |
| V-6042 LP | 60″x42″x30″ | up to 800 lbs. | 48 sec. | 80,800 lbs. | 34.0 psi | 10 hp | 6,200 lbs. |
| V-6030 HDXP | 60″x48″x30″ | up to 1,200 lbs. | 83 sec. | 86,500 lbs. | 56.0 psi | 15 hp | 8600 lbs |
