Apartment & High-Rise Compactors
With hand-feed hoppers, chute systems, or through-the-wall installations, these powerful yet compact units are perfect for apartments, hotels, hospitals, office buildings, and other high-rise facilities.
Click below for Detailed Specifications:
Read about Mark-Costello’s Garden Apartments and Property Management Waste Solutions click here
Check out Mark-Costello’s complete line of Stationary Compactors click here

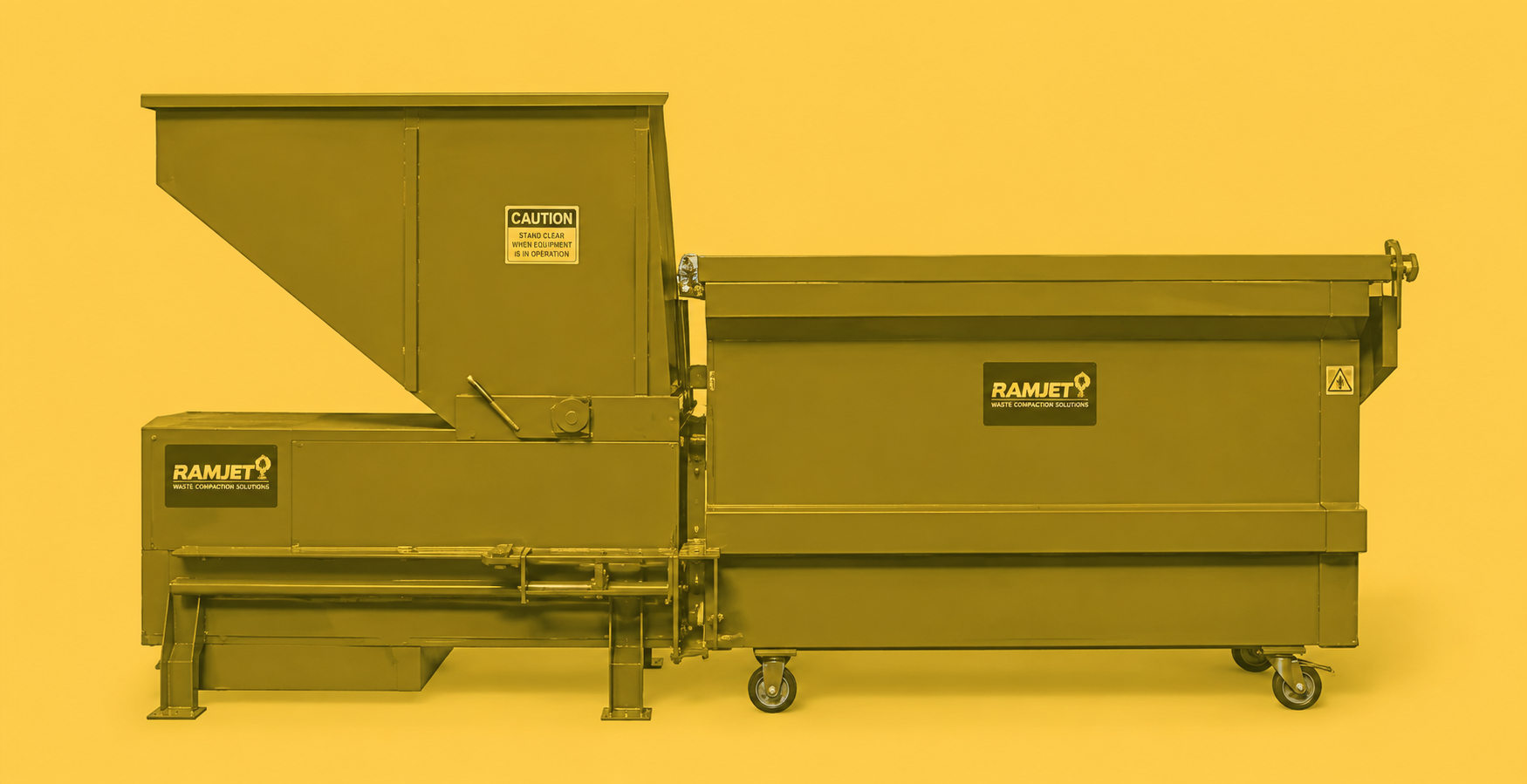

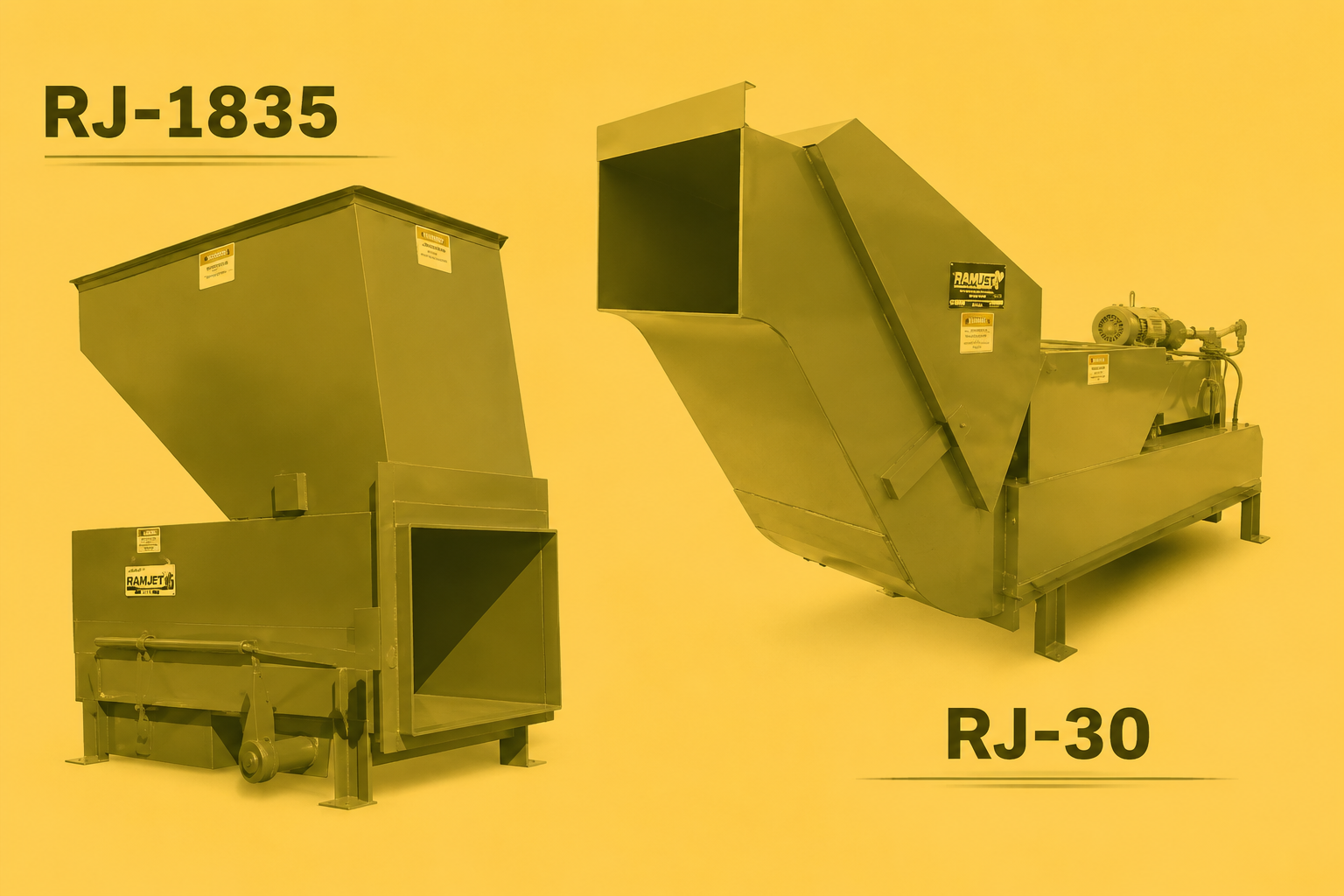

RJ-1835 High-Rise and Apartment Compaction System
Use these products for weekly volumes of less than 150 uncompacted cubic yards. The RJ-1835 is a low-cost system. Both units are designed for use with small (2 yd.) containers and for installation in basements of high-rise buildings.
- Fits where other “apartment packers” cannot, up to 14″ shorter…
- Uses heavy-duty ratchets and quick container release feature…
- Utilizes constant flow pump for uniform cycle speed not attainable with hi-lo pump…
- Automatically shuts down in the event oversized, uncrushable objects are in the charge box – also when the container is “packed-out”…
- A detachable container which is only 44″ wide – to pass through narrow openings and fit smaller trash rooms can be ordered with the RJ-1835…
- Key operated controls are standard.
Click here for detailed specifications and dimensional data
RJ-30 Structural Dimensions
Performance Data
| 100% UL Listed | |
| Charge Box Capacity | (WASTEC Rating) 0.28 cy. (0.21m3) |
| Clear Top Opening | 30 1/2″L x 28″W (775mm x 711mm) |
| Capacity Per Hour | 32 cy. (25m3) |
| *Cycle Time | 32 seconds |
| Total Normal Force | 46,200 lbs. (206 kN) |
| Total Maximum Force | 57,700 psi (257 kN) |
| Normal Ram Face Pressure | 128.3 psi (885 kPa) |
| Maximum Ram Face Pressure | 160.3 psi (1105 kPa) |
| Ram Penetration | 4.5″ (114mm) |
Electrical Equipment
| *Electrical Motor | 15 hp (11.2 kW) 3/60-208/230/460 |
| Voltage | 120 VAC |
| Panel Box | NEMA 3 Type, All circuits fused Standard Controls: Keylock Start/Mushroom Stop/Reverse Controls mounted in panel box face |
Hydraulic Equipment
| Pump Capacity | 18.5 gpm (70 liter/min) |
| Normal Pressure | 1200 psi (83 bar) |
| Maximum Pressure | 1500 psi (103 bar) |
| Cylinder | 7″ Bore (102mm) 4″ Rod (51mm) |
| Weight | 3,300 lbs. (1497kg) |
RJ-1835 Structural Dimensions
Performance Data
| 100% UL Listed | |
| Container Capacities | 2 cy. |
| Charge Box Capacity | (Mfrs. Rating) 0.32 cy. (0.24m3) (WASTEC Rating) 0.27 cy. (0.20m3) |
| Clear Top Opening | 22 1/2″L x 28″W (572mm x 711mm) |
| Capacity Per Hour | 26 cy. (19.9m3) |
| *Cycle Time | 38 seconds |
| Total Normal Force | 22,000 lbs. (98 kN) |
| Total Maximum Force | 25,800 psi (115 kN) |
| Normal Ram Face Pressure | 39.6 psi (273 kPa) |
| Maximum Ram Face Pressure | 46.5 psi (321 kPa) |
| Ram Penetration | 4.5″ (114mm) |
Electrical Equipment
| *Electrical Motor | 3 hp (2.5 kW) 3/60-230/460 |
| Voltage | 120 VAC |
| Panel Box | NEMA 3 Type, All circuits fused Standard Controls: Keylock Start/Mushroom Stop/Reverse Controls mounted in panel box face |
Hydraulic Equipment
| Pump Capacity | 4 gpm (15 liter/min) |
| **Normal Pressure | 1750 psi (121 bar) |
| **Maximum Pressure | 2050 psi (141 bar) |
| Cylinder | 4″ Bore (102mm) 2″ Rod (51mm) |
| Weight | 1,400 lbs. (635kg) |
* Optional Power Unit Available:
€ 5 hp, 3/60-230/460 6 gpm pump, 25 second cycle time.
€ 3/4 hp, single phase, 60 Hz, 120 volt electric motor and two stage pump, 50 second cycle time.
** Typical specifications for this type of compactor require this range. Because of the superior packing efficiency of the RJ-1835, however, the pressures are factory set at 1100 psi normal, 1400 psi maximum, for use with small (2 cy.) containers to reduce container overload, extend container life, and allow easier emptying. If higher pressures are required, please advise the factory at time of order.
