Stationary Compactor RamJet 5.5 Cubic Yard
Designed to Handle Heavy Industrial Manufacturing Waste Compaction

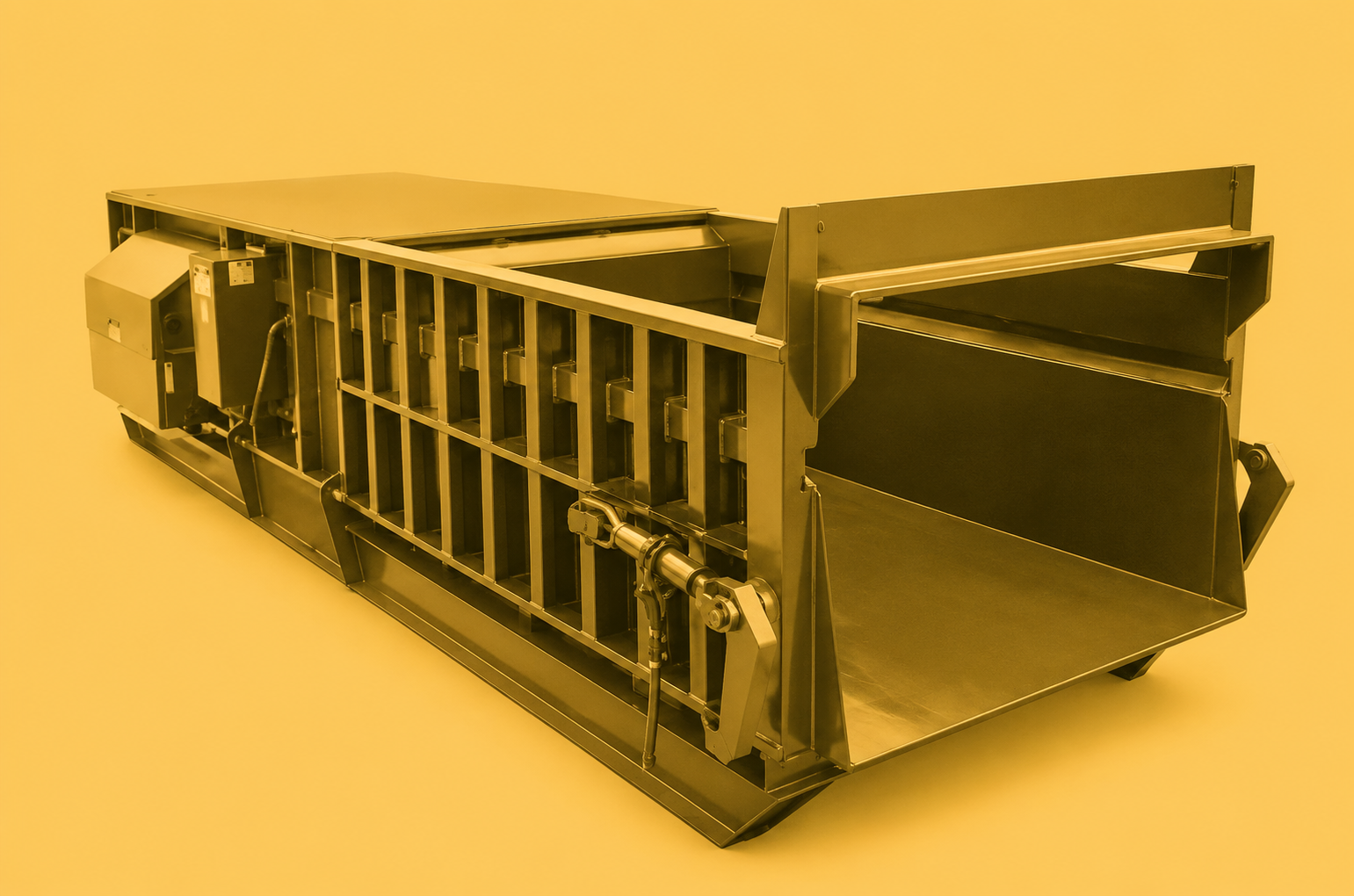

Mark-Costello’s RamJet RJ-550 is a high capacity, heavy-duty compactor ideal for industrial and commercial applications where large volumes of solid waste are generated. Its rugged construction and large hydraulic power unit allow maximum compaction performance. The RJ-550 features a large 96 1/2″ x 60″ clear top opening to accommodate oversized crates and cartons.
Built to Last…
A quality built unit, the RJ-550 is solidly reinforced with 4″ I-beams throughout. The sturdy ram has a 1/2″ face plate. Sides are constructed of 3/16″ thick steel supported by 14 vertical angles with 1×4 bar running horizontally on each side of the charge box area for increased rigidity and strength. The tough 1″x8″x6″ angle breaker bar easily handles the beating of daily industrial trash.
Ram Guide System

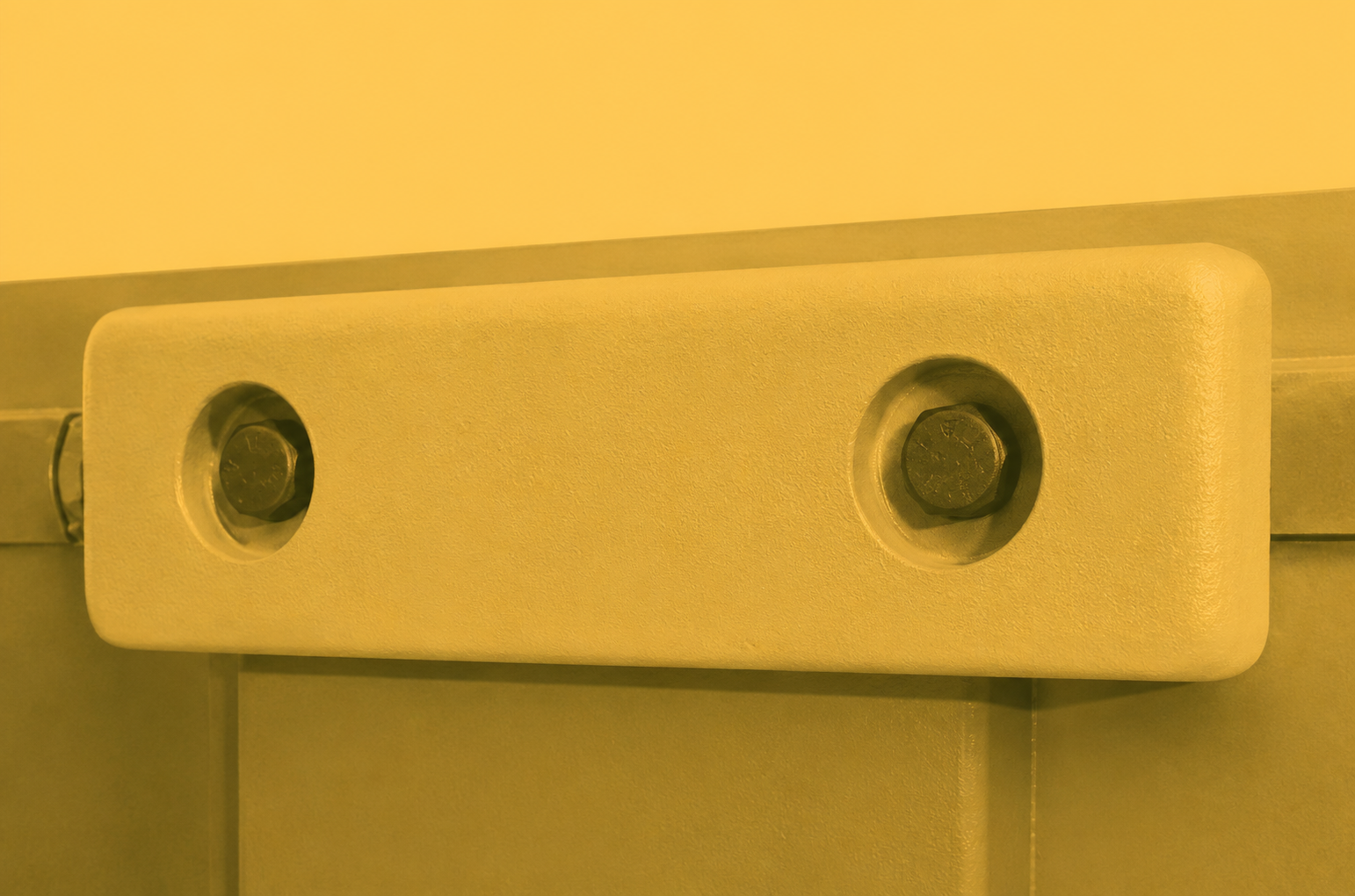

The packing ram is supported by specially formulated cast iron shoes which ride on replaceable wear strips. This exclusive design protects the charge box floor from the full force of the packing ram, extending its life and dramatically reducing compaction-robbing friction.
Transfer Station…
The RJ-550 is also designed for residential collection vehicles serving transfer station applications for municipalities and private contractors. A conveniently located RJ-550 transfer facility will eliminate the need for unnecessary trips to the landfill by intermediate collection vehicles resulting in fuel, maintenance and labor cost reductions. Compaction into large compaction containers or transfer trailers may also reduce dumping fees.
Side-Mount Power Unit
Mark-Costello’s Side-Mounted Power Unit, the first in the industry, offers the convenience and ease-of-maintenance of a remote power pack with the space savings of an integrated power pack. This new configuration eliminates ALL electrical components inside the compactor.
The Pump on Mark-Costello’s high performance Side-Mounted Power Unit is secured to a “C” flange TEFC motor with a machined bracket that guarantees coupling alignment. The Limit Switch and all other parts of the power unit are easily accessible for ease-of-maintenance. The Reset Button for the Motor Starter is also located on the outside which eliminates entry into the control box.
All of Mark-Costello’s RamJet 225 Series Compactors are Totally UL Listed!
Structural Dimensions
- Side-Mount Power Unit
- Power Unit Weather Cover
- Control Panel Box
- Motor Starter Reset Button
- Limit Switch
- Ram
- Ram Guide Shoes with Replaceable Wear Strips
| A | B | C | D | E | F | G | H | I | J | K | L | M |
| 239 3/4″ | 78″ | 54″ | 69 1/8″ | 60″ | 5″ | 33 1/2″ | 14 1/2″ | 44 1/2″ | 9″ | 140″ | 99″ | 39 7/16″ |
| 6090 mm | 1981 mm | 1372 mm | 1756 mm | 1524 mm | 127 mm | 851 mm | 369 mm | 1130 mm | 226 mm | 3556 mm | 2515 mm | 1002 mm |
Specifications
| Charge Box Capacity | ||
| [Mfrs. Rating] | 5.5 cy | 4.21 m3 |
| [WASTEC Rating] | 4.22 cy | 3.23 m3 |
| Clear Top Opening | 97″ X 60″ | 2464mm x 1524mm |
Performance Data
| Cycle Time | 60 s | 60 s |
| Total Normal Force | 65,400 lb | 291 kN |
| Total Maximum Force | 77,000 lb | 342 kN |
| Normal Ram Face Pressure | 32.5 psi | 224 kPa |
| Maximum Ram Face Pressure | 38.3 psi | 264 kPa |
| Ram Penetration | 13 1/2″ | 343 mm |
Electrical Equipment
| Electrical Motor 3/60-208/230/460 | 15 hp | 11.2 kW |
| Electrical Control Voltage | 120 VAC | 120 VAC |
| UL Labeled Panel Box: Type NEMA 3R , All Circuits Fused | ||
| Standard 2 Button Controls: Keylock Start/ Mushroom Stop Connected to 13′ Sealtite | ||
Hydraulic Equipment
| Hydraulic Pump Capacity | 18.5 gpm | 70 L/min. |
| Normal Pressure | 1700 psi | 12 mPa |
| Maximum Pressure | 2000 psi | 14 mPa |
| Hydraulic Cylinder | 7″ Bore x 4″ Rod | 178 mm x 102 mm |
| Weight | 9000 lbs. | 4082 kg |
Pictures on this page are illustrative only. Specifications are subject to change without notice to accommodate improvements to the equipment. Certified in compliance with ANSI Regulation Z245.2, all OSHA standards, and certified under WASTEC’s Stationary Compactor Certification Program. Products must be used with safe practice and in accordance with said regulations and standards.

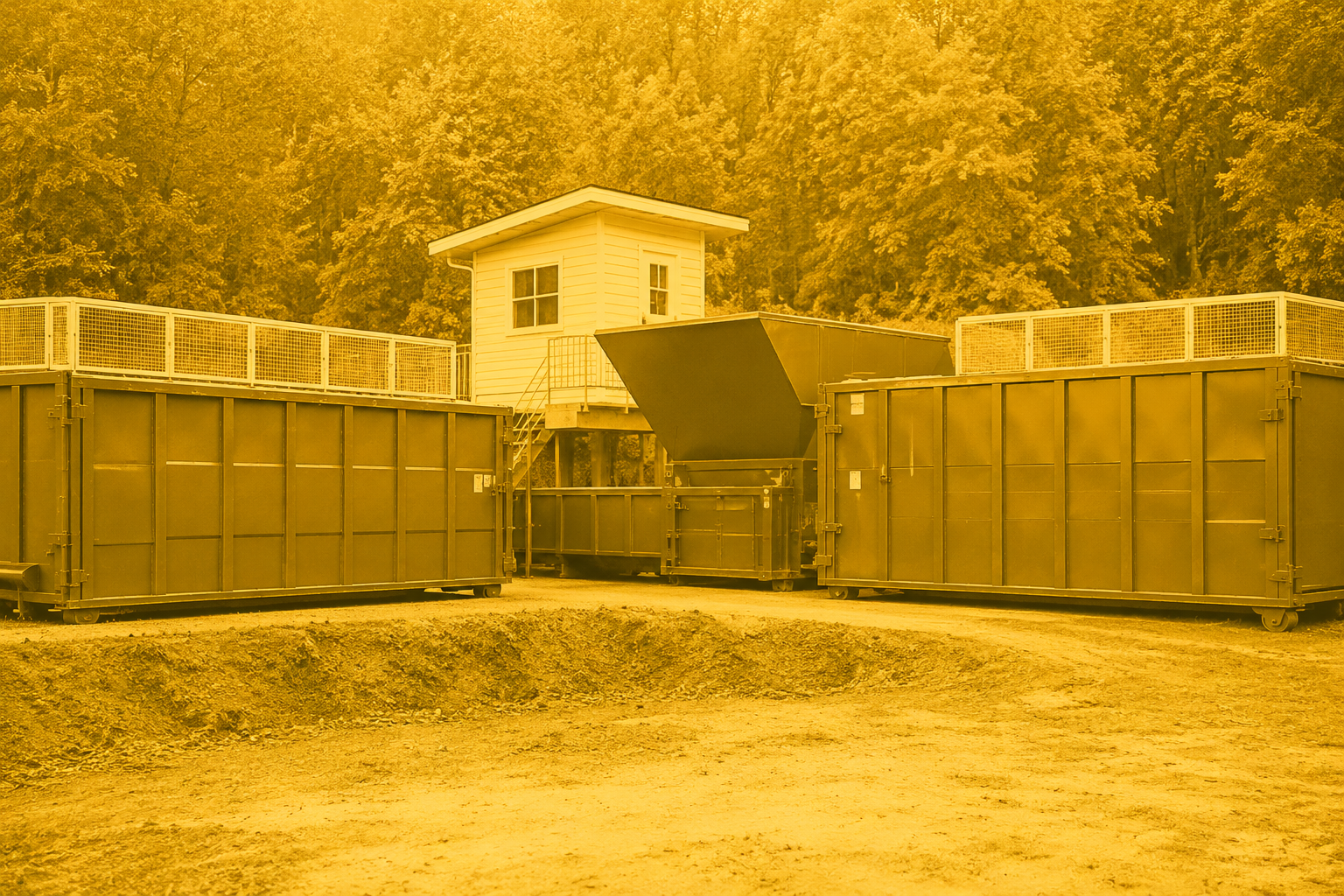

This Transfer Station features a RJ-550 Compactor with a RJ-42RC Compaction Container. This station serves approximately 2,000 to 3,000 people. Rear loader trucks dump residential waste into the station which is also open to residents and businesses who do not have collection service.
Optional Features Available
The optional TrashMinder® is the most advanced method for reporting and measuring container fullness as well as for managing user access and billing. Click here for details.
Multi-cycle timer, dual controls, ozone odor control system, security chutes, hoppers, cart dumpers and many other options are also available as well as a full line of compaction containers.
Visit our Options web pages to choose from a wide range of steel and operational options and accessories.
