Stationary Compactor RamJet 4 Cubic Yard
Mark-Costello’s RamJet RJ-450 Offers Best Value…
The RamJet RJ-450 is excellent for distribution centers, warehouses, and general industrial use. The extra large 60″ x 67 1/2″ clear top opening accepts those large, bulky items with ease. Ruggedly built to meet the challenge, this unit packs a powerful 56,500 pounds of crushing force. And, the RJ-450 is built for performance and reliability as only Mark-Costello, the solid waste industry’s specialist in on-site compaction systems, can provide.
Industrial Grade Systems
The RJ-450 features industrial grade electrical and hydraulic systems that are totally UL Listed! This means trouble free operation and top performance year after year. Mark-Costello’s side-mounted power unit combines the convenience and ease-of-maintenance that comes with a remote power pack with the space savings and ease-of-installation of an integrated power pack.
Ram Guide System
The packing ram is supported by specially formulated cast iron shoes which ride on replaceable wear strips. This exclusive design protects the charge box floor from the full force of the packing ram, extending its life and dramatically reducing compaction-robbing friction.

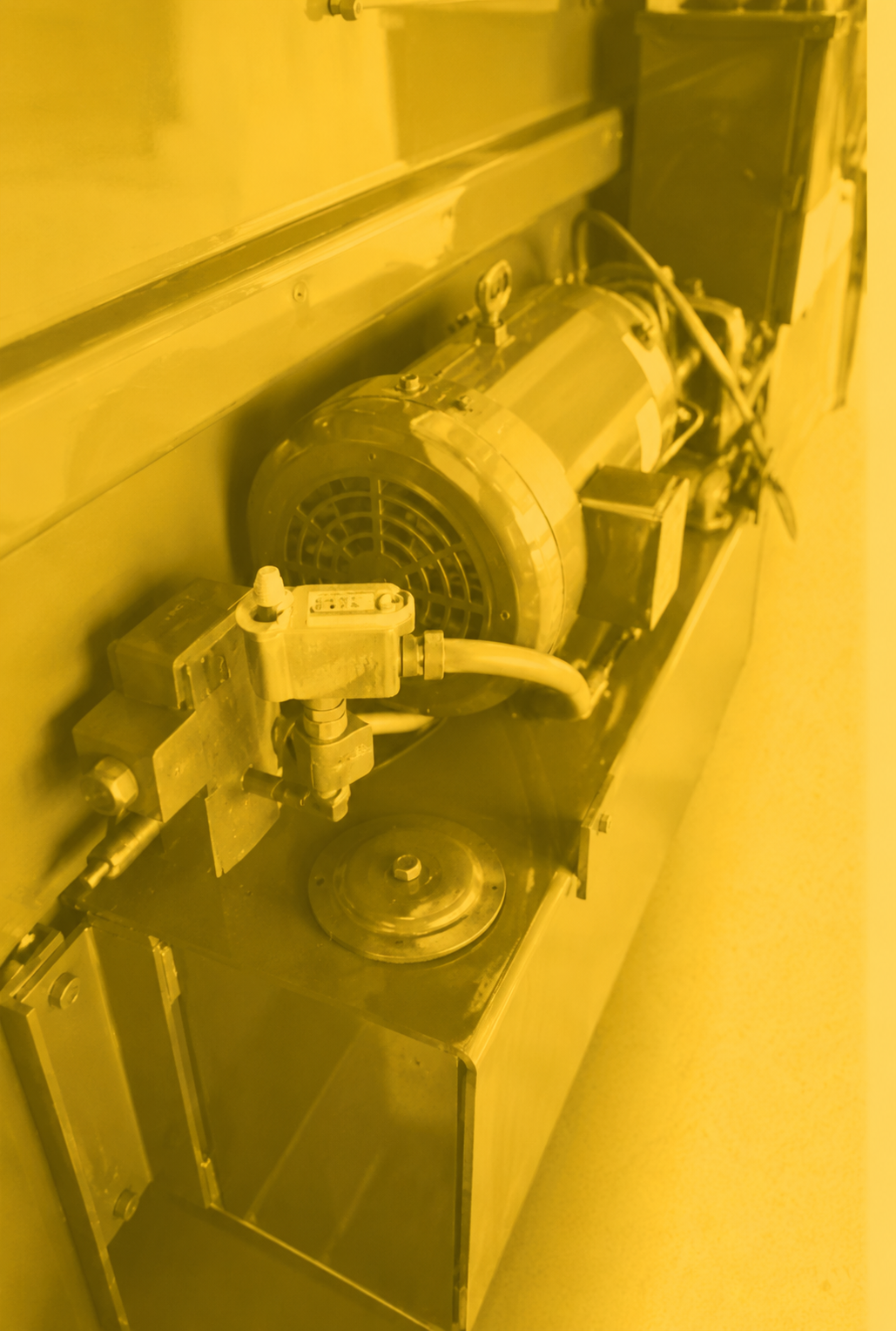

Side-Mount Power Unit
Mark-Costello’s Side-Mounted Power Unit, the first in the industry, offers the convenience and ease-of-maintenance of a remote power pack with the space savings of an integrated power pack. This new configuration eliminates ALL electrical components inside the compactor.
The Pump on Mark-Costello’s high performance Side-Mounted Power Unit is secured to a “C” flange TEFC motor with a machined bracket that guarantees coupling alignment. The Limit Switch and all other parts of the power unit are easily accessible for ease-of-maintenance. The Reset Button for the Motor Starter is also located on the outside which eliminates entry into the control box.
Advanced Control System
The RJ-450 is totally UL listed! The controls are key-operated and fully automatic. The heavy duty push button controls are contained in a weatherproof NEMA 3 enclosure. Connected to the power pack with 13′ of sealtite, the controls can be located for operator convenience.
All of Mark-Costello’s RamJet 225 Series Compactors are Totally UL Listed!
Structural Dimensions
- Side-Mount Power Unit
- Power Unit Weather Cover
- Control Panel Box
- Motor Starter Reset Button
- Limit Switch
- Ram
- Ram Guide Shoes with Replaceable Wear Strips
| A | B | C | D | E | F | G | H | I | J | K | L | M | N |
| 173 3/4″ | 78″ | 54″ | 69″ | 60″ | 5″ | 31 1/2″ | 14 1/2″ | 44 1/2″ | 9″ | 102 3/4″ | 71″ | 39 7/16″ | 14 9/16″ |
| 3035 mm | 1981 mm | 1233 mm | 1753 mm | 1524 mm | 127 mm | 800 mm | 369 mm | 1130 mm | 226 mm | 2610 mm | 1803 mm | 1002 mm | 370 mm |
| Charge Box Capacity | ||
| [Mfrs. Rating] | 4.0 cy | 3.06 m3 |
| [WASTEC Rating] | 2.95 cy | 2.25 m3 |
| Clear Top Opening | 67.5″ X 60″ | 1715mm x 1524mm |
Performance Data
| Cycle Time | 50 s | 50 s |
| Total Normal Force | 48,100 lb | 214 kN |
| Total Maximum Force | 56,500 lb | 251 kN |
| Normal Ram Face Pressure | 23.9 psi | 165 kPa |
| Maximum Ram Face Pressure | 28.1 psi | 194 kPa |
| Ram Penetration | 13″ | 330 mm |
Electrical Equipment
| Electrical Motor 3/60-208/230/460 | 15 hp | 11.2 kW |
| Electrical Control Voltage | 120 VAC | 120 VAC |
| UL Labeled Panel Box: Type NEMA 3 , All Circuits Fused | ||

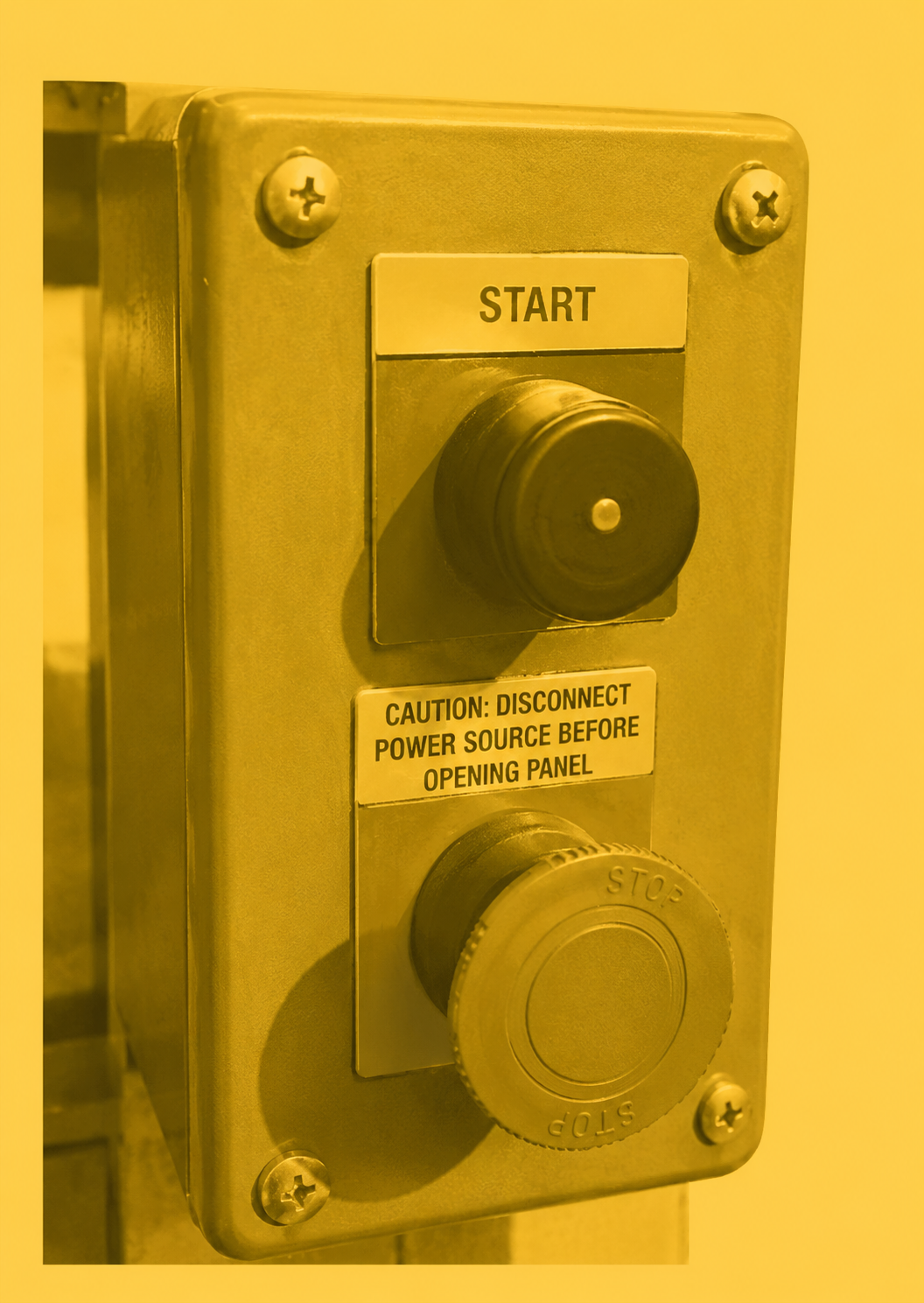

| Standard 2 Button Controls: Keylock Start/ Mushroom Stop Connected to 13′ Sealtite | ||
Hydraulic Equipment
| Hydraulic Pump Capacity | 18.5 gpm | 70 L/min. |
| Normal Pressure | 1700 psi | 117 bar |
| Maximum Pressure | 2000 psi | 138 bar |
| Hydraulic Cylinder | 6″ Bore x 4″ Rod | 152 mm x 102 mm |
| Weight | 8000 lbs. | 3629 kg |
Pictures on this page are illustrative only. Specifications are subject to change without notice to accommodate improvements to the equipment. Certified in compliance with ANSI Regulation Z245.2, all OSHA standards, and certified under WASTEC’s Stationary Compactor Certification Program. Products must be used with safe practice and in accordance with said regulations and standards.
Compactors can be fitted with custom hoppers, tread plates, hand & toe rails, security chutes, cart dumpers and many other optional equipment.
Optional Features Available
The optional TrashMinder® is the most advanced method for reporting and measuring container fullness as well as for managing user access and billing. Click here for details.
Multi-cycle timer, dual controls, ozone odor control system, security chutes, hoppers, cart dumpers and many other options are also available as well as a full line of compaction containers.
Visit our Options web pages to choose from a wide range of steel and operational options and accessories.
