Sliderbed Conveyor Systems
Mark-Costello’s Sliderbed Conveyors are friction driven conveyors with a belt supporting bed for low to medium volume applications. This group of conveyors is divided into three classes:
Sliderbed Baler Feed (SB)
For low volume (2 to 4 tons/hour) baler and compactor feed applications such as Mark-Costello’s Closed-End and Side-Eject balers and waste compactors. They feature a 2 ply rubber cleated belt; 2 hp motor for above grade (AG) and 3 hp motor for below grade (BG) applications.
Sliderbed Warehouse (SBW)
Used for overhead transfer to compactors and low volume (1 to 2 tons/hour) balers. They feature a 2 ply ruff top belt; 2 to 5 hp motor; and light weight construction for suspension systems.
Sliderbed Heavy Duty (SBH)
Used for medium volume (3 to 15 tons/hour) baler feed applications where heavier duty components and longer belts are required such as in Material Recovery Facilities. They are also ideal for Closed-End and Side-Eject balers as well as Open-End, Auto-Ties and shredders. They feature 3 to 10 hp motors; 3 ply rubber cleated belt; spherical roller bearings.
Sliderbed Conveyors
| Product Class | Application | Widths | Overall Lengths | Configuration |

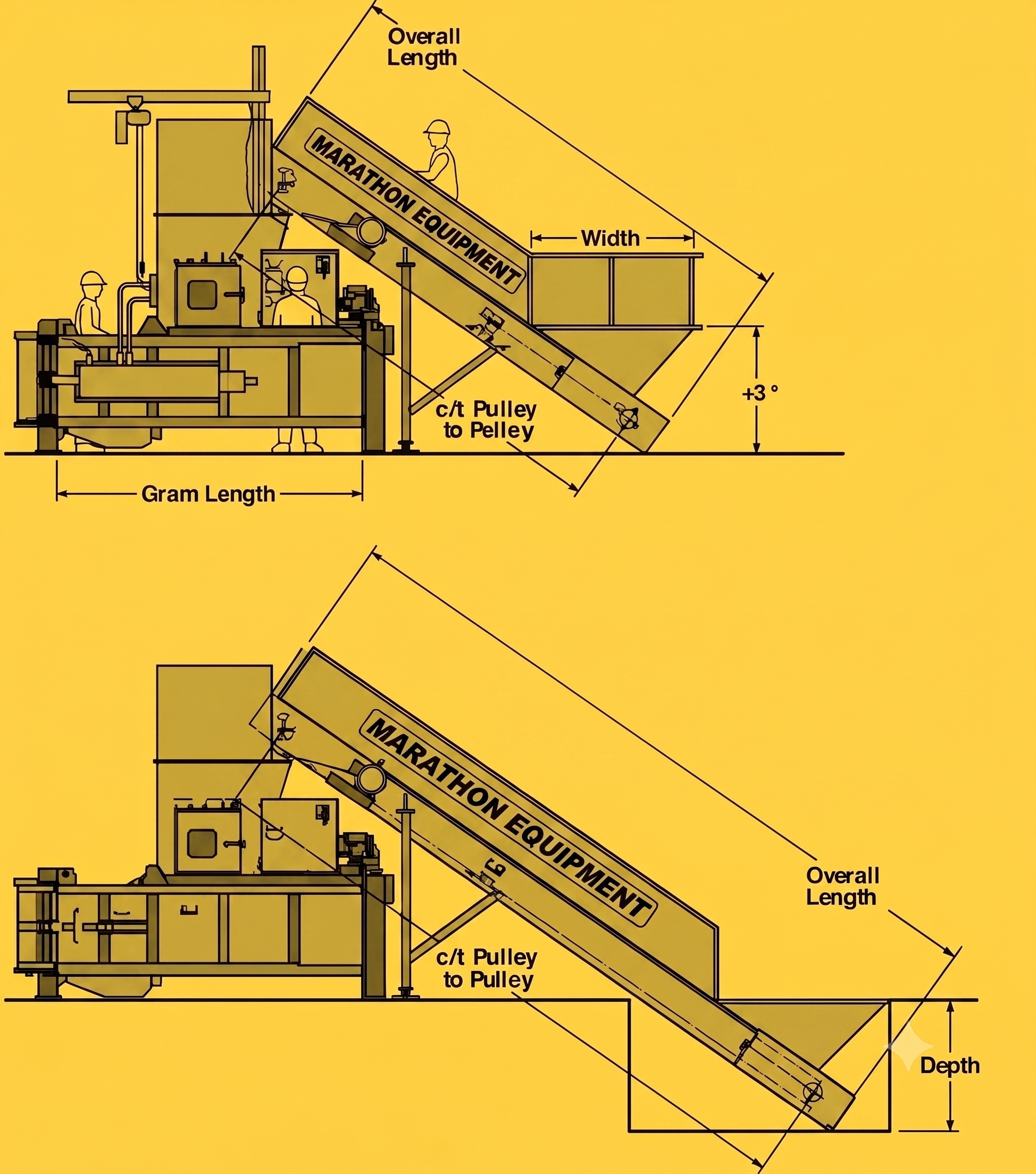

| SB | Low volume (2 to 4 tph) | 24″ – 72″. | up to 40 ft. | AG or BG |
| Variable Speed (VS) control optional | ||||
| SBW | Low volume (1 to 2 tph) | 20″ – 36″ | up to 100 ft. | W (Warehousing) |
| SBH | Medium volume (3 to 15 tph) | 36″ – 72″ | up to 100 ft. | BG |
| Heavy Duty 3 ply belt, Spherical Roller, Bearings, Large Diameter Pulley | ||||
