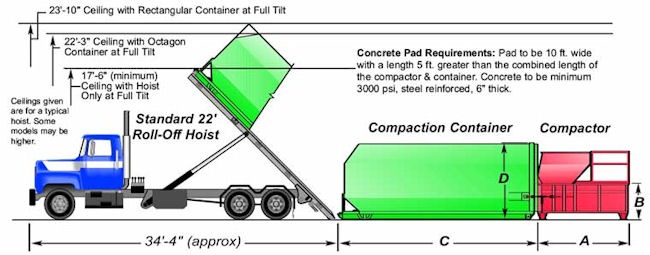

Compactor Dimensional & Clearance Data
The following dimensions should be used as a guide. Actual dimensions may vary depending on installation and roll-off hoist models. They are subjected change without notice.
| Compactors | A | B | Containers | C | D |
| RJ-225 ULTRA | 9′-11 1/2″ | 4′-0″ | RJ-43 OC | 23′-8 1/2″ | 8′-8″ |
| RJ-225 & 225 HD | 9′-11 1/2″ | 4′-0 9/16″ | RJ-40 OC | 22′-2″ | 8′-8″ |
| RJ-30 OC | 16′-11 1/2″ | 8′-8″ | |||
| TC-220 TANK | 6′-0″ | 4′-0″ | RJ-47 RC | 24′-6″ | 8′-9″ |
| TC-225 TANK | 7′-7″ | 4′-0″ | RJ-42 RC | 23′-0″ | 8′-9″ |
| TC-300 TANK | 9′-4 1/2″ | 4′-0″ | |||
| RJ-325 & 325 HD | 14′-5 3/4″ | 4′-0 9/16″ | Self-Contained | A + C | D |
| RJ-400 ULTRA | 14′-5 3/4″ | 4′-0″ | RJ-250 SC-34cy. | 22′-5″ | 8′-8″ |
| RJ-250 SC-30cy. | 20′-5″ | 8′-8″ | |||
| RJ-275 | 12′-1 3/4″ | 4′-0 7/16″ | RJ-250 Ultra-34cy. | 22′-5″ | 8′-8″ |
| RJ-275 XHD | 12′-6″ | 4′-0″ | RJ-250 Ultra-30cy. | 20′-5″ | 8′-8″ |
| RJ-100 Ultra-34cy. | 24′-2″ | 8′-8″ | |||
| RJ-450 | 14′-5 3/4″ | 4′-6″ | RJ-100 Ultra-30cy. | 22′-1 1/2″ | 8′-8″ |
| RJ-450 PC | 14′-6″ | 4′-6″ | RJ-88 SC-15cy. | 15′-7″ | 7′-5″ |
| RJ-550 & 575 HD | 19′-11″ | 4′-6″ | RJ-88 SC-20cy. | 18″-6″ | 7′-5″ |
| RJ-575 PC | 19′-11″ | 4′-6″ | RJ-88 SC-24cy. | 21′-4″ | 7′-5″ |
