RJ-250 SC Ultra® Self-Contained Compactor/Container 15 to 34 Cubic Yard Capacity
The RJ-250 SC Ultra® Compactors ideal for . . .
- Malls
- Supermarkets
- Large Restaurants
- Hotels
- Hospitals and Institutions
- Resorts and Food Processors
- Property Management
- School Systems
Also See the RJ-250 HT. The RJ-250HT features a Hydraulic Tailgate and is well suited for security chute-fed and dock-fed applications where maneuvering space for the collection vehicle is limited.
RJ-250SC Ultra Features:
- Exclusive 41″ x 58″ feed opening to handle large, bulky items!
- Full Door Seal with “P” Seal
- Bubble Gate with “Auto Relatch” and Double-Hinge
- Qwik Clean Tank®
- CYCON Life-Xtender® Cyclic Control System
- Continuous feeding capability – even while compactor is operating!
- Adaptable to special loading systems such as large capacity hoppers, security chutes or total enclosures.
- Total odor and pest control via Marathon’s Ozone Odor Control option
- Easy loading from either ground or dock level.
- Over 24 tons of crushing force to reduce refuse to a fraction of its former size saving valuable space.
- Fits into same space as industry pace-setting RJ-100SC! Extra length roll-off hoist is not required!
- Easy and fast installation! Installation costs are cut by half over conventional compaction systems.
- Fire hose connection provided on each unit.
- Factory testing to assure leakproof construction.
All of Mark-Costello’s RamJet 225 Series Compactors are Totally UL Listed!

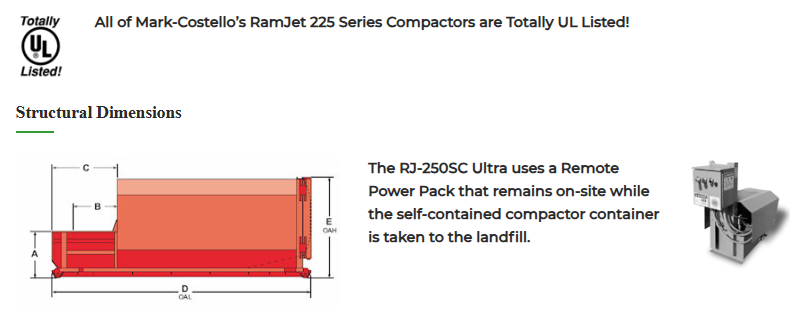

Structural Dimensions
The RJ-250SC Ultra uses a Remote Power Pack that remains on-site while the self-contained compactor container is taken to the landfill.
| RJ-250SC Ultra | A | B | C | D** | E | LBS. |
| 15 cu yds | 4′ – 0″ 1219mm | 3′ 7-1/4″ 1099mm | 5′ 7-1/2″ 1715mm | 14′ 3″ 4344mm | 7′ 5″ 2261mm | 8360 3792kg |
| 20 cu yds | 4′ – 0″ 1219mm | 3′ 7-1/4″ 1099mm | 5′ 7-1/2″ 1715mm | 17′ 4″ 5284mm | 7′ 5″ 2261mm | 8860 4019kg |
| 25 cu yds | 4′ – 0″ 1219mm | 3′ 7-1/4″ 1099mm | 5′ 7-1/2″ 1715mm | 17′ 10-1/2″ 5449mm | 8′ 8″ 2642mm | 9270 4205kg |
| 30 cu yds | 4′ – 0″ 1334mm | 3′ 7-1/4″ 1099mm | 5′ 7-1/2″ 1715mm | 20′ 5″ 6223mm | 8′ 8″ 2642mm | 9715 4407kg |
| 34 cu yds | 4′ – 0″ 1219mm | 3′ 7-1/4″ 1099mm | 5′ 8″ 1727mm | 23′ 0-1/2″ 7023mm | 8′ 8″ 2642mm | 11300 5126kg |
Specifications:
| Charge Box Capacity | ||
| [Mfrs. Rating] | 1.7 cu yd | 1.3 m3 |
| [WASTEC Rating] | 1.31 cu yd | 1.0 m3 |
| Total Capacity | 34 cu yd | 25.9 m3 |
| Clear Top Opening | 41″L x 58″W | 1016 mm x 1041 mm |
| Loading Height | 48″ | 1219 mm |
Performance Characteristics:
| Cycle Time | 33 seconds | 33 seconds |
| Total Normal Force | 39,900 lb | 177 kN |
| Total Maximum Force | 49,500 lb | 220 kN |
| Normal Ram Face Pressure | 27.1 psi | 187 kPa |
| Maximum Ram Face Pressure | 33.7 psi | 232 kPa |
| Ram Penetration | 6″ | 152 mm |
Electrical Equipment:
| Electric Motor 3/60/208-230/460 | 10 hp | 7.5 kW |
| Electric Control Voltage | 120 VAC | 120 VAC |
| Panel Box Assembly | ||
| UL Rated Key Operated | ||
| All Circuits Fused – 3 Push Button Station Start/Stop/Reverse | ||
Hydraulic Equipment:
| Hydraulic Pump | 10 gpm | 37.85 L/min |
| Normal Pressure | 1850 psi | 127.5 bar |
| Maximum Pressure | 2300 psi | 158.6 bar |
| Cylinder Bore | 2 @ 4″ each | 102 mm |
| Cylinder Rod | 2 @ 2-1/2″ each | 64 mm |
Pictures on this page are illustrative only. Specifications are subject to change without notice to accommodate improvements to the equipment. Certified in compliance with ANSI Regulation Z245.2, all OSHA standards, and certified under WASTEC’s Stationary Compactor Certification Program. Products must be used with safe practice and in accordance with said regulations and standards.
Optional Features Available
Your Self-Contained can be fitted with a various configurations of cart dumper systems. Other options include: multi-cycle timer, dual controls, ozone odor control system, security chutes, hoppers, and many much more.
The optional TrashMinder® is the most advanced method for reporting and measuring container fullness as well as for managing user access and billing. Click Here for details.
